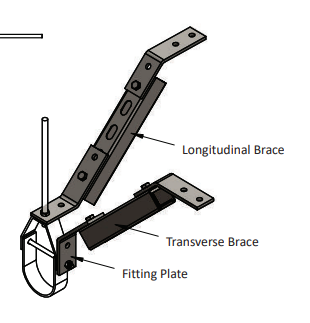

Channel Bracing-single Pipe Seismic Support

APPLICATION:
Bracing systems are designed & constructed to resist virtually all code-specified seismic forces in the event of an earthquake, therefore keeping non-building structural components operational and intact.
Actual applications may vary and are not limited to the support methods shown. However, any changes to the support methods, hardware & designs depicted in these guidelines should only be made in accordance with standard engineering practices
