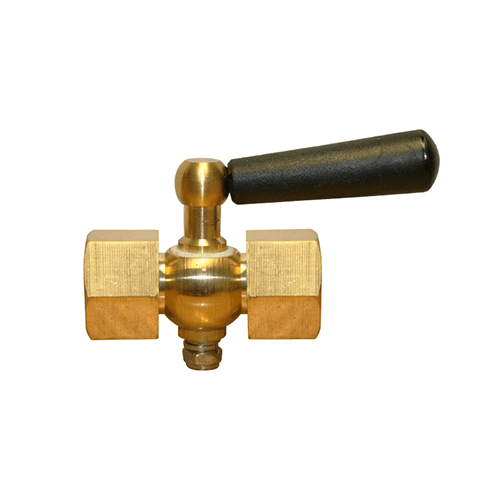

Gauge Cocks

Three-port brass gauge cocks with Teflon seals, air bleed holes, and nylon handles.
Designed for reliable and efficient operation.
Option of forged machine body available.
PRODUCT FEATURES:
Rated maximum working pressure: 25 kg/cm
Connection sizes -1/2”, 3/8” BSPT
Provide integral Teflon seating to ensure leakproof and smooth operation.
Glass-reinforced Nylon handle.
An air bleed hole is provided to purge trapped air, which can affect the accuracy of the gauge.
The functioning of each unit is individually tested at 150% of rated pressure.
Application:
Gauge cocks are isolating valves for pressure gauges. The key advantage of their three-port
Design is the purging of trapped air when the gauge is connected to the fluid system.
