Half Saddle
APPLICATION:
Half Saddle is recommended for the support of standard conduit, cable, and steel pipe on walls or sides of beams. Not recommended for use horizontally on ceilings, bottoms of beams, and similar installations since the factor of safety is greatly reduced when so used.
CONSTRUCTION:

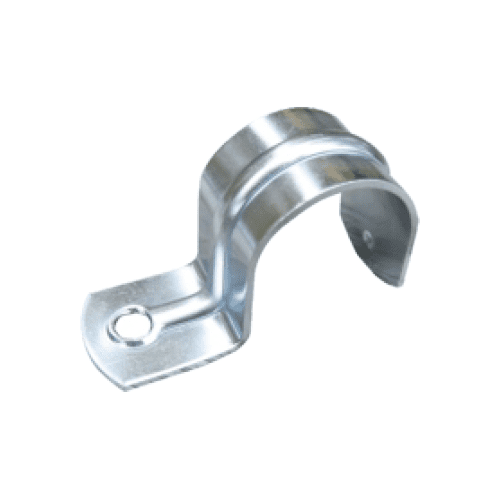

It consists of a single piece of mild steel shaped to the proper configuration as shown in the above diagram.
| Type | Clamp |
|---|---|
| Material | Mild Steel. Also, other materials can be provided on request |
| Sizes | Min – 1/2" | Max – 6" |
| Finish | Electrogalvanized |
| Max Temp | 343°C(650°F) |
