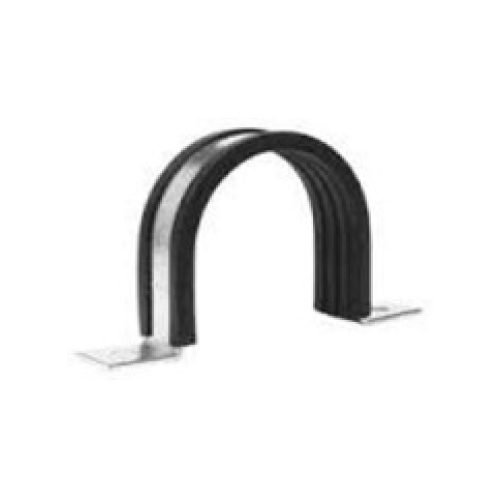

U strap with Lining
APPLICATION:

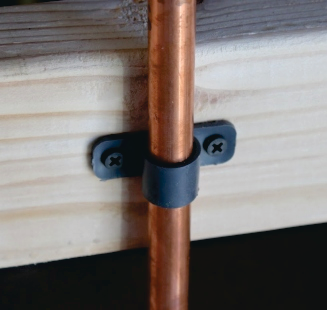

A Standard U strap with Lining is recommended for supporting a piping system with fittings vertically or horizontally to walls or ceilings. It can be used as a restrainer when installed on top of structural wood beams for beam, for limiting pipe movements due to thrust loads during sprinkler system start-up.
CONSTRUCTION:
A Standard U strap with Lining consists of a single piece of mild steel shaped to hold the pipe down to walls or ceilings. Reduces noise up to 18 dB.
A Standard U strap with Lining is recommended for supporting a piping system with fittings vertically or horizontally to walls or ceilings. It can be used as a restrainer when installed on top of structural wood beams for beam, for limiting pipe movements due to thrust loads during sprinkler system start-up.
CONSTRUCTION:
A Standard U strap with Lining consists of a single piece of mild steel shaped to hold the pipe down to walls or ceilings. Reduces noise up to 18 dB.
| Approvals | UL Listed & FM Approved ANSI/MSS SP-58 & SP-69 (Type 26) Federal Specification WW-H-171E & A-A-1192A (Type 26) |
|---|---|
| Type | WIth LIning |
| Material | Mild Steel. Also, other materials can be provided on request |
| Sizes | Min – 1/2" | Max – 24" |
| Finish | Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake & Epoxy Coated. |
| Min Load | As per Size |
| Max Load | As per Size |
